Cutting Edges

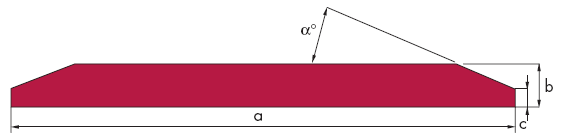

 Double Beveled
|
Designation |
Weight |
Area of section |
Dimensions |
|
|
|
|
a |
b |
c |
α° |
|
|
kg/m |
cm2 |
mm |
mm |
mm |
|
|
|
|
IL 31+ |
18,3 |
23,3 |
165 |
16,0 |
4,0 |
25°00' |
|
IL 32 |
74,5 |
94,9 |
406 |
25,0 |
8,5 |
22°30' |
|
IL 35 |
23,5 |
29,9 |
203 |
16,0 |
5,0 |
25°00' |
|
IL 36 |
85,7 |
109,1 |
406 |
28,5 |
12,0 |
22°30' |
|
IL 37 |
86,9 |
110,8 |
330 |
35,0 |
21,0 |
22°30' |
|
IL 40 |
28,3 |
36,0 |
203 |
19,0 |
8,0 |
25°00' |
|
IL 41 |
61,1 |
77,8 |
330 |
25,0 |
11,0 |
22°30' |
|
IL 42 |
48,1 |
61,3 |
280 |
25,0 |
6,0 |
22°30' |
|
IL 45 |
37,8 |
48,2 |
203 |
25,0 |
14,0 |
25°00' |
|
IL 49 |
55,3 |
70,4 |
305 |
25,0 |
9,5 |
22°30' |
|
IL 50 |
35,0 |
44,6 |
254 |
19,0 |
6,0 |
25°00' |
|
IL 51 |
74,8 |
95,2 |
360 |
30,0 |
7,0 |
22°30' |
|
IL 55 |
47,0 |
59,9 |
254 |
25,0 |
12,0 |
25°00' |
|
IL 59 |
79,2 |
100,9 |
330 |
32,0 |
18,0 |
22°30' |
|
IL 60 |
70,1 |
89,3 |
330 |
28,5 |
14,5 |
22°30' |
|
IL 61 |
106,4 |
135,5 |
406 |
35,0 |
18,5 |
22°30' |
|
IL 64 |
102,5 |
130,6 |
330 |
41,0 |
27,0 |
22°30' |

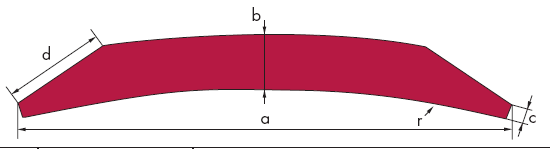

Curved Double
Beveled
|
Designation |
Weight |
Area of section |
Dimensions |
|
|
|
|
a |
b |
c |
d |
r |
|
|
kg/m |
cm2 |
mm |
mm |
mm |
mm |
mm |
|
|
IL 02 |
28,1 |
35,8 |
203,2 |
19 |
5,6 |
33,3 |
273 |
|
IL 06 |
38,2 |
48,7 |
203,2 |
25,4 |
11,9 |
33,3 |
273 |
|
IL 15 |
23,1 |
29,5 |
203,2 |
15,9 |
2,4 |
33,3 |
273 |
Download:
Flyer
Cutting Edges
|
