Mining Support Sections
Steel Qualities
 Any
grades covered by the standards DIN, NF etc. are
available.
The
grades 31 MN4(V) and TH 520, in sections TH 29 - TH
34 - TH 40 - TH 42 are obtained by Q.S.T., a
Quenching and Self Tempering on-line-process.
Products
TH Sections and Mining Section
Clamp
Monorail
Conveyer Section
Mechanical Properties
|
Designation
|
Yield Strength |
Tensile Strength |
Elongation (5D) |
Notch impact test (DVM
in aged condition 10 %) |
|
|
DIN 21544
NF A 35256 |
|
|
|
|
|
31 MN 4 (U)
TH 350 |
≥ 350 N/mm2 |
≥ 520 N/mm2 |
≥ 18% |
≥ 18 J |
|
31 MN 4 (V)
TH 520 QST
|
≥ 520 N/mm2 |
≥ 650 N/mm2 |
≥ 19% |
≥ 60 J |
TH Sections and Mining Section
Clamp
(ex rolling mill ARES)
|
|
Weight |
Area of |
Dimensions |
Section Properties |
|
Designation |
|
section |
|
|
|
|
|
|
|
|
x-x axis |
y-y axis |
|
|
kg/m |
cm2 |
B mm |
b mm |
H mm |
Ix |
Wx |
Iy |
Wy |
|
cm4 |
cm3 |
cm4 |
cm3 |
|
|
TH 29/58
|
29 |
37 |
150 |
44 |
124 |
598 |
99,6 |
799 |
106 |
|
TH 34/58
|
33,9 |
43,14 |
171 |
50,5 |
136,5 |
892 |
128 |
1205 |
141 |
|
TH 36/58
|
35,9 |
45,7 |
171 |
50,5 |
138 |
969 |
136 |
1265 |
148 |
|
TH 40/58
|
39,9 |
50,84 |
172 |
50 |
145 |
1125 |
155 |
1446 |
168 |
|
TH 42/58
|
41,8 |
53,25 |
172 |
50 |
146,4 |
1197 |
163,5 |
1505 |
175 |
|
TH 44/58
|
43,7 |
55,7 |
172 |
50 |
147,8 |
1265 |
171 |
1564 |
182 |
|
|
Weight |
Area of |
Dimensions |
Section Properties |
|
Designation |
|
section |
|
|
|
|
|
|
|
|
|
x-x axis |
y-y axis |
|
|
kg/m |
cm2 |
H mm |
A mm |
e mm
|
h
mm |
Ix |
Wx |
Iy |
Wy |
|
cm4 |
cm3 |
cm4 |
cm3 |
|
|

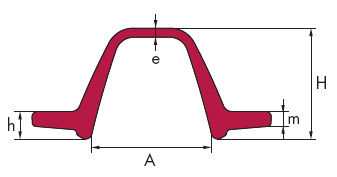

GTHN 29 |
40,69 |
51,84 |
112,5 |
118 |
11 |
30,5 |
606,1 |
107,7 |
2136,903 |
184,2 |
|
36 Clamp |
48,9 |
62,3 |
121 |
133 |
10 |
30 |
803,66 |
117 |
3422,95 |
262 |
|
For Zores T.H. 36-58 |
|
|
|
|
|
|
|
|
|
|

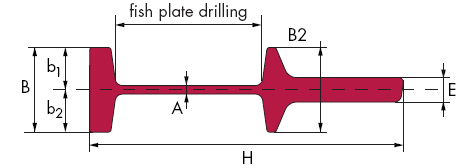

Monorail
|
|
Weight |
Area of section |
Dimensions |
|
Designation |
|
|
|
|
|
|
|
H |
B |
|
|
kg/m |
cm2 |
mm |
mm |
|
|
Monorail
|
40,5
|
51,6
|
255,4
|
69 |

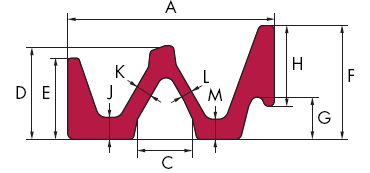

Conveyer Section
|
|
Weight |
Area of |
Dimensions |
Section Properties |
|
Designation |
|
section |
|
|
|
|
|
|
|
x-x axis |
y-y axis |
|
|
kg/m |
cm2 |
A mm |
F mm |
Ix |
Wx |
Iy |
Wy |
|
cm4 |
cm3 |
cm4 |
cm3 |
|
|
E 74 V.S
|
77,1
|
98,2
|
225
|
124
|
5586
|
482 |
930 |
122
|
Download:
Flyer
Mining Support Sections
|
