Steel Qualities
ARES produces grades covered by the customer specifications.

Products:

Single grouser

Double grouser

Triple grouser



Single grouser


Designation Weight   Dimensions
  kg/m A mm B mm E mm

IS 20/1

29,4

222

55,5

13,5

IS 36

31,6

236

57,5

< 13,3

IS 37

37,4

245

71,5

14,7

IS 30/1

47,9

247,6

71,4

16,8

TS1-31

30,566

232,5

65

12

TS1-32A

31,1

236,5

58,7

13,3

TS1-32

32,2

236,5

58,7

13,8

TS1-38

38,2

245

71,5

14,7

TS1-53

53,9

242,5

84

19

TS1-56 A

50,9

260

77,5

16,5

TS1-56

55,88

260

77,5

19

TS1-56 L

56,33

264

77,5

19

TS1-71

71,05

301

87,5

20,5

TS1-73

73,51

305

93

20,5




Double grouser

Designation Weight   Dimensions
  kg/m

A mm

B mm

E mm

IS 8

27,5

202

31

13

IS 11

36,5

232

34,5

14,5

IS 29/4

46,4

249,5

37

16,5

MR 30 B

46,3

246,6

38,1

16,5

TS2-49

48,52

250

49,5

15

TS2-73

73,7

306

50

20,5

TS2-73 B

80,78

306

50

23,5

TS2-104

104,116

330

50

35

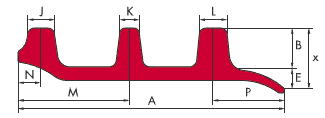

Triple grouser

Designation Weight   Dimensions
  kg/m A mm B mm E mm

IS 17+

23,3

199

25

8,5

IS 24/2

32,6

217,5

26

12

IS 32/3

27,5

199

25

11

IS 35

25,6

199

25

9,5

IS 41/2+

28,3

217,5

26

10

IS 49

35,9

232,5

31

11

IS 58+

26,6

219

26

8,5

IS 59

33,7

232,5

26

11

IS 69

39,4

232,5

31

13

TS3-27

27,8

219

30

8,5

TS3-27B

30,3

219

30

10

TS3-27C

32,08

219

30

11

TS3-28AA

26,5

217,5

26

8,5

TS3-28A

27,2

217,5

26

9

TS3-28

28,87

217,5

26

10

MR 0

29,5

203

25,3

12,7

MR 2 A

28,02

203

25,3

11,5

MR 2

30

203

25,3

12,7

TS3-32

32,64

222,5

28

12,5

TS3-38

38,927

240

26,5

13

TS3-38b

42,55

240

26,5

15

TS3-40

40,278

247

36

11

TS3-40B

44,12

247

36

13

TS3-45

45,483

254,5

37

13

TS3-48

48,016

253

30,5

16,5

TS3-51

51,1

254,5

37

16

TS3-55

55,476

254,5

37

18

TS3-60

60,468

254,5

37

20,5

MR 6

69,8

266

30

30

      Download: Flyer Track Shoes
